2 1/2" Deep / 60% Open Heavy Duty Pultruded Grating Specifications

Part #  HD25-60

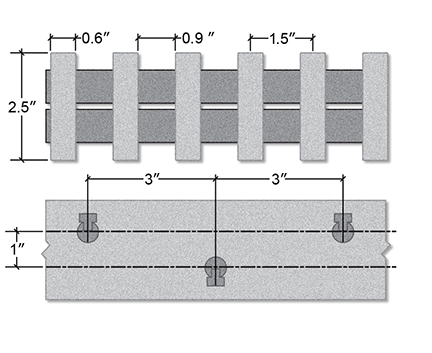

Heavy Duty Pultruded Fiberglass Section View - 2 1/2 Inch Deep / 60% Open
  Number of Bars   8

  Bar Depth   2.5"

  Open Area   60%

  Max Width   5'

  Load Bar Centers   1.5"

  Approximate Weight   10.71 lbs/ft2

  Cross Bar Spacing   3"

Engineering Properties Per Foot of Width
A = 12.00 in2          I = 6.25 in4          S = 5.00 in3


SPAN
 		 LOAD TYPE
 		 LOAD - In LBS/FT2
50
 100
 150
 200
 250
 500
30" Uniform Load 0.00 0.00 0.01 0.01 0.01 0.02
Concentrated Line 0.00 0.00 0.00 0.01 0.01
 0.01
36" Uniform Load
 0.00
 0.01
 0.01
 0.02
 0.02
 0.04
Concentrated Line 0.00
 0.00 0.01
 0.01
 0.01
 0.02
42"
 Uniform Load
 0.01
 0.01 0.02
 0.03 0.03
 0.07
Concentrated Line
 0.00 0.01  0.01
 0.01
 0.02
 0.03
48" Uniform Load 0.01 0.02 0.03 0.04 0.05 0.11
Concentrated Line 0.00 0.01 0.01 0.02 0.02 0.04
54" Uniform Load 0.02 0.03 0.05 0.07 0.08 0.17
Concentrated Line 0.01 0.01 0.02 0.02 0.03 0.06
60" Uniform Load 0.03 0.05 0.08 0.10 0.13 0.26
Concentrated Line 0.01 0.02 0.02 0.03 0.04 0.08
