Amerirail Guardrail Systems



Safety Yellow Pickett Style Fiberglass Guardrail System

'Picket Style' Guardrail System

Request a Quote

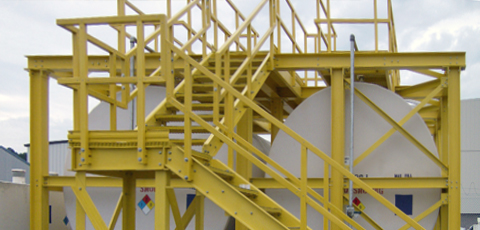

FRP Guardrail System Surrounding Two Tanks

Standard 'Two Rail' Guardrail System

Request a Quote
Safety Yellow 3 Rail Fiberglass Guardrail System

'3 Rail' Guardrail System

Request a Quote

AmerirailTM FRP Guardrail Systems are fabricated from structural components manufactured by the pultrusion process. American Grating custom fabricates all guardrails according to each project’s drawings and specifications  using either Isophthalic Polyester or Vinyl Ester components. All our OSHA compliant guardrail systems are available pre-fabricated and factory assembled or can be shipped in components for easy on-site assembly. Our standard handrail is a 2-rail system manufactured in a “Safety Yellow” color, complete with Kickplate. Heavy Duty and and Ergonomic Oval versions are also available.


RAIL SYSTEMS

  • 2 Rail System - Standard
  • 3 Rail System -
  • Picket Rail System - ADA Compliant


POSTS

  • Top or Side Mounted
  • 2" x 3/16" Square Tube
  • Standard - Heavy Duty - Ergonomic Oval


TOP RAIL

  • 2" x 3/16" Square Tube - Standard or Heavy Duty
  • 2 1/8" x 1 1/2" x 1/4" Ergonomic Oval


MID RAIL

  • 2" x 3/16" Square Tube - Heavy Duty
  • 1 1/2" Diameter x 1/8" Round Tube - Standard or Ergonomic Oval


KICKPLATE

  • 4" x 1/2" x 1/8 Ribbed


PEDESTAL

  • FRP Molded Part SS316 - Other designs also available


Safety Yellow Pultruded Fiberglass Round Tube
Safety Yellow Pultruded Fiberglass Square Tube
Safety Yellow Pultruded Fiberglass Ergonomic Oval
Safey Yellow Pultruded Fiberglass Kickplate
Safety Yellow Molded Fiberglass Pedestal



Safety Yellow Fiberglass Removable Conveyor Guard

CONVEYOR SAFETY GUARDS

Part of American Gratings custom structural product line of safety related products, Conveyor / Machine Safety Guards can be removable for access and/or cleaning or installed permanently fixed.
