1 1/2" Deep x 1 1/2" x 6" Superspan Molded Grating Specifications

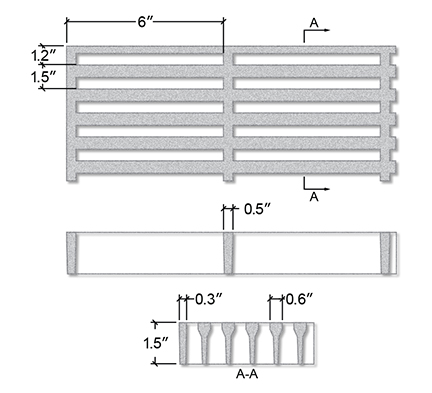

Molded Superspan Fiberglass Section View - 1 1/2 Inch Deep x 1 1/2 Inches x 6 Inches
  Number of Bars   8
  Load Bar Width   0.6"
 Load Bar Centers   1 1/2"
  Open Area   55%
  Approximate Weight   4.42 lbs/ft2

Engineering Properties Per Foot of Width
A = 4.39 in2     I = 0.88 in4     ST = 1.30 in3     SB = 1.06 in3

  Hold Down Clip   MP-1560


SPAN

LOAD TYPE

LOAD - In LBS/FT2
50
100
150
200
250
500
24" Uniform Load
< 0.01
0.02
0.03
0.04
0.05
0.09
Concentrated Line < 0.01
0.01 0.02
0.03
0.04
0.07
30"
Uniform Load
0.02
0.04 0.06
0.08 0.10
0.20
Concentrated Line
0.01 0.03 0.04
0.05
0.06
0.13
36" Uniform Load 0.04 0.08 0.12 0.16 0.19 0.39
Concentrated Line  0.02 0.04 0.06 0.08 0.10 0.21
42" Uniform Load 0.07 0.14 0.21 0.28 0.35 --
Concentrated Line 0.03 0.06 0.10 0.13 0.16 0.32
48" Uniform Load 0.12 0.24 0.36 0.48 0.60 --
Concentrated Line 0.05 0.10 0.14 0.19 0.24 0.48
54" Uniform Load 0.19 0.38 0.57 -- -- --
Concentrated Line 0.07 0.13 0.20 0.27 0.34 0.67
