1" Deep / 60% Open I-Bar Industrial Pultruded Grating Specifications

Part # PI-1060

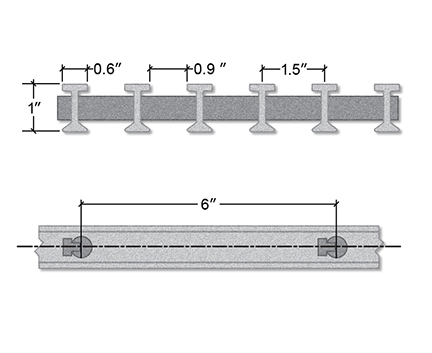

  Number of Bars   8
  Bar Depth   1"
  Open Area   60%
  Max Width   5'
  Load Bar Centers   1.5"
  Approximate Weight   2.33 lbs/ft2
  Cross Bar Spacing   6"

Engineering Properties Per Foot of Width
A = 2.44 in2          I = 0.31 in4          S = 0.62 in3

  Hold Down Clip  CMP-1060


SPAN
 		 LOAD TYPE
 		 LOAD - In LBS/FT2
50
 100
 150
 200
 250
 500
24" Uniform Load 0.01 0.02 0.04 0.05 0.06 0.12
Concentrated Line < 0.01 0.02 0.03 0.04 0.05
 0.09
30" Uniform Load
 0.03
 0.05
 0.08
 0.11
 0.14
 0.27
Concentrated Line 0.02
 0.03 0.05
 0.07
 0.09
 0.17
36"
 Uniform Load
 0.06
 0.11 0.17
 0.22 0.27
 --
Concentrated Line
 0.03 0.06  0.09
 0.12
 0.15
 0.29
42" Uniform Load 0.10 0.20 0.30 0.40 0.50 --
Concentrated Line 0.05 0.09 0.14 0.18 0.23 0.46
48" Uniform Load 0.17 0.34 -- -- -- --
Concentrated Line 0.07 0.14 0.20 0.27 0.34 --
54" Uniform Load 0.27 -- -- -- -- --
Concentrated Line 0.10 0.19 0.29 0.38 0.48 --
