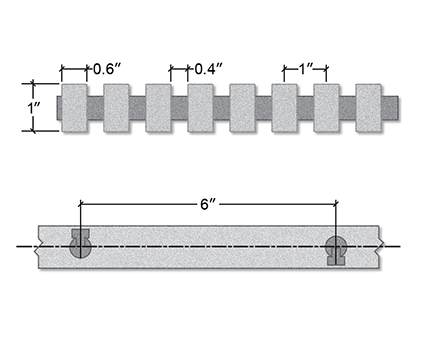

1" Deep / 40% Open Heavy Duty
Pultruded Grating Specifications
Part # HD10-40
Number of Bars
12
Bar Depth
1"
Open Area
40%
Max Width
5'
Load Bar Centers
1"
Approximate Weight
5.84 lbs/ft
2
Cross Bar Spacing
6"
Engineering Properties Per Foot of Width
A = 7.20 in
2
I = 0.60 in
4
S = 1.20 in
3
SPAN
LOAD TYPE
LOAD - In LBS/FT
2
50
100
150
200
250
500
30"
Uniform Load
0.02
0.03
0.05
0.06
0.08
0.16
Concentrated Line
0.01
0.02
0.03
0.04
0.05
0.10
36"
Uniform Load
0.03
0.06
0.09
0.12
0.15
0.31
Concentrated Line
0.02
0.03
0.05
0.07
0.08
0.16
42"
Uniform Load
0.05
0.11
0.16
0.22
0.27
--
Concentrated Line
0.02
0.05
0.07
0.10
0.12
0.25
48"
Uniform Load
0.09
0.18
0.27
0.37
0.46
--
Concentrated Line
0.04
0.07
0.11
0.15
0.18
0.37
54"
Uniform Load
0.15
0.29
0.44
--
--
--
Concentrated Line
0.05
0.10
0.15
0.21
0.26
--
60"
Uniform Load
0.22
0.44
--
--
--
--
Concentrated Line
0.07
0.14
0.21
0.28
0.35
--
