1" Deep / 50% Open T-Bar Pedestrian Pultruded Grating Specifications

Part # T10-50

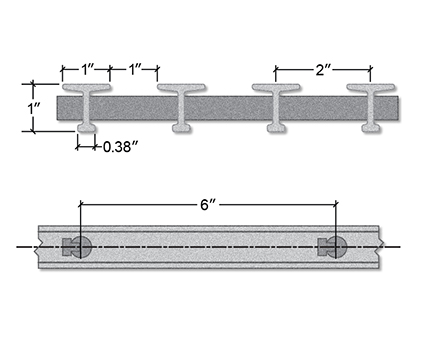

Pultruded Fiberglass T Bar Section View - 1 Inch Deep / 50% Open
  Number of Bars   6
  Bar Depth   1"
  Open Area   50%
  Max Width   5'
  Load Bar Centers   2"
  Approximate Weight   1.81 lbs/ft2
  Cross Bar Spacing   6"

Engineering Properties Per Foot of Width
A = 1.76 in2     I = 0.21 in4     ST = 0.59 in3     SB = 0.31 in3

  Hold Down Clip  M-2050
SPAN
 		 LOAD TYPE
 		 LOAD - In LBS/FT2
50
 100
 150
 200
 250
 500
18" Uniform Load < 0.01 0.02 0.03 0.04 0.04 0.09
Concentrated Line < 0.01 0.02 0.03 0.04 0.05
 0.09
24" Uniform Load
 0.02
 0.05
 0.07
 0.10
 0.12
 0.24
Concentrated Line 0.02
 0.04 0.06
 0.08
 0.10
 0.19
30"
 Uniform Load
 0.06
 0.11 0.17
 0.23 0.28
 --
Concentrated Line
 0.04 0.07  0.11
 0.14
 0.18
 0.36
36" Uniform Load 0.12 0.23 0.35 0.46 -- --
Concentrated Line 0.06 0.12 0.18 0.25 0.31 --
42" Uniform Load 0.21 0.42 -- -- -- --
Concentrated Line 0.10 0.19 0.29 0.39 0.48 --
48" Uniform Load 0.36 -- -- -- -- --
Concentrated Line 0.14 0.28 0.43 -- -- --
